SGD 347.81 - SGD 398.87

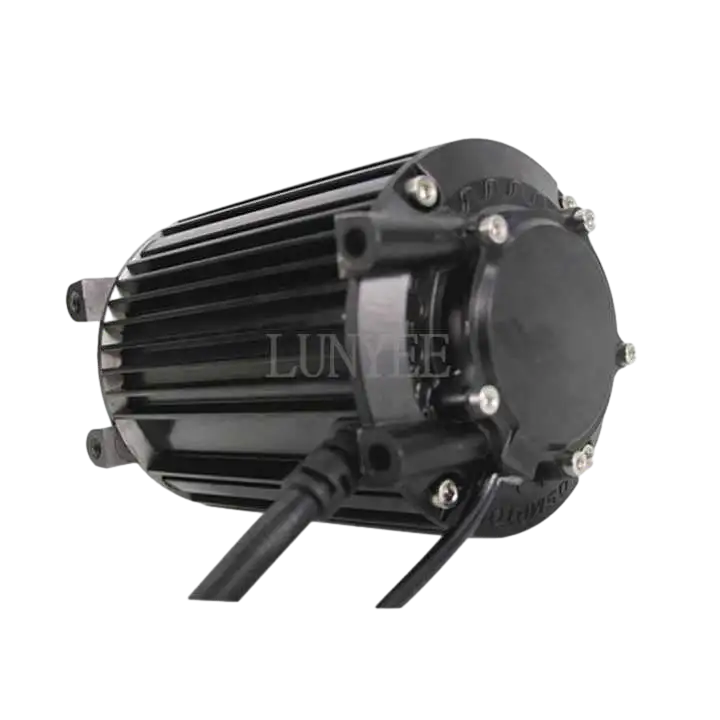

This 4000w 100kph Mid Drive Motor from DC Brushless Motors offers high power output and reliability for electric motorcycle applications. With 4kW of power, this motor can reach up to 100kph, making it suitable for dirt bikes and other high-performance ve
Diameter of stator 138mm
Continous Power 7500w
Peak Power 13.5kw
Speed 100KPH with 17inch rim
| 4000W 138 90H Mid Drive Motor | |
| Motor | BLDC Permanent Magnet Inner Rotor Motor With Hall Sensor |
| Single axle | |
| Matched Whee | 17inch wheel, for Dirt Bike application |
| Magnet Height | 90mm, 5 pole pairs |
| Diameter of stator | 138mm |
| Continous Power | 7500w |
| Peak Power | 13.5kw |
| Rated Voltage | 72V as default |
| Speed | 100KPH with 17inch rim |
| No-load rpm | 4000rpm without flux weakening, 6500RPM with flux weakening |
| Torque | approx Max. 72N.m without Reduction ratio, rated torque 14.3N. |
| Continuous Battery Current | 89A (72V) |
| Peak Battery Curren | 200A (72V) |
| Thermic Probe | KTY83/122 |
| Working Temperature | 70-120 degrees, peak 150degrees |
| N.W./G.W | 13kgs/14kgs |
| Controller | Votol EM150SP motor controller with standards CANBUS |
| Throttle | Twist Throttle with switch |
| Display | Hall / CT-22 display |
