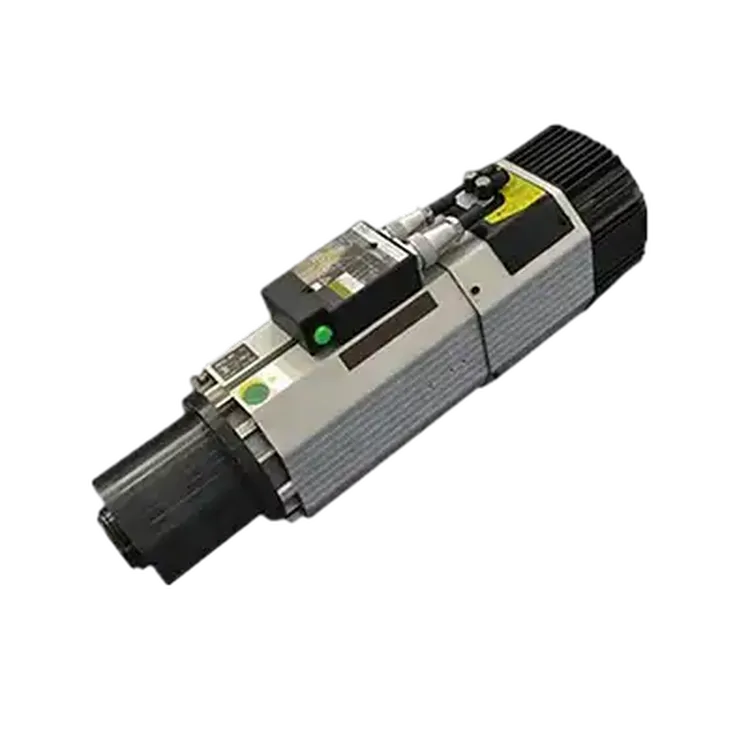

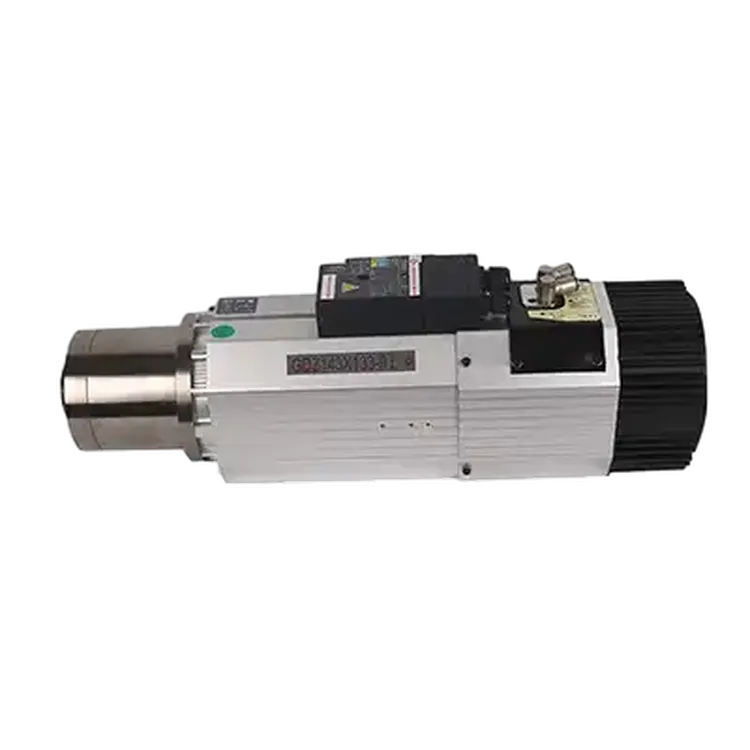

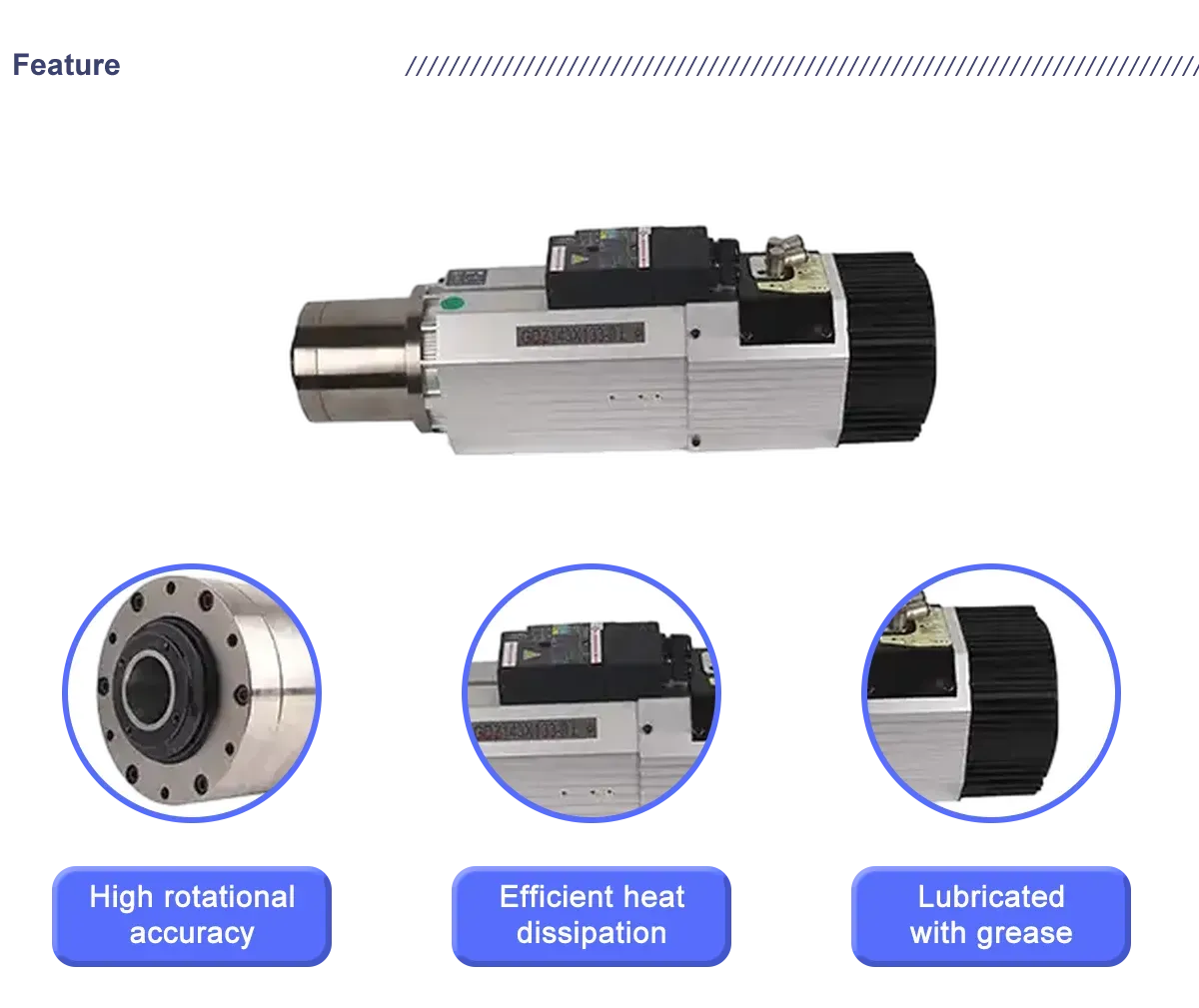

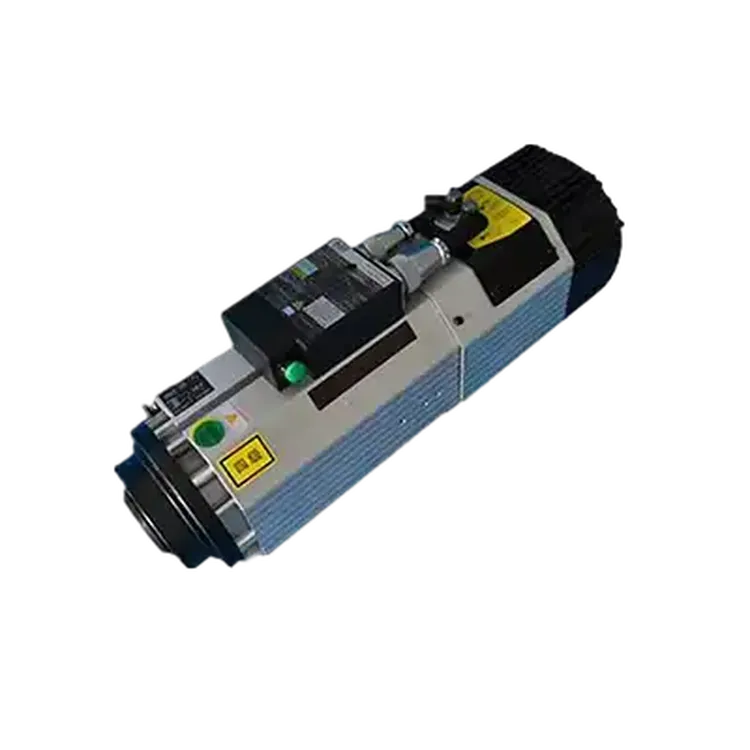

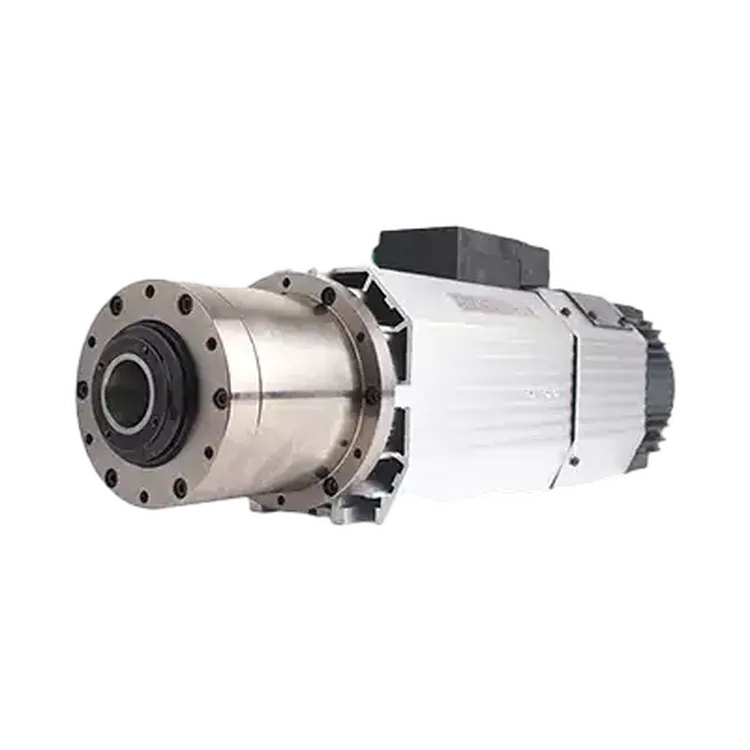

9-10KW 220-380V ATC Milling Spindle Motor

$1,569.00

This 9-10KW ATC Milling Spindle Motor has a 220-380V voltage rating, making it ideal for machinery that requires high power output while still maintaining a low voltage. It can handle heavy-duty tasks and is capable of withstanding long-term use.

Motor Type spindle motor

Output Power (KW) 9-10

Voltage (V) 220-380

Rated Speed (rpm) 24000


Spindle Model GDL70-24Z/9.0
Cooling Type Air Cooling
Power 9KW
Voltage 380V/220V
Current 20A/32A
Size 142×417
Frequency 400HZ-800HZ
Speed 12000~24000
Collet ISO30/BT30
Bearing Type

 2*7008C/P4,2*7006C/P4

Weight 27Kg
9-10KW 220-380V ATC Milling Spindle Motor 9-10KW 220-380V ATC Milling Spindle Motor 9-10KW 220-380V ATC Milling Spindle Motor
